Shenzhen Timesmx Technology Co., Ltd

Features:

1、Heat treatment under high vacuum and inert gas protection.2*10-1pa

2、Heat treat various wires to eliminate stress and heat evenly

3、Maximum temperature 750℃

4、Aging heat treatment can be carried out for large coils and small coils

5、The built-in circulating air system makes the convection and heating inside the cavity stable

6、Hierarchical heat treatment,vacuum heat treatment and gas heat treatment can be set

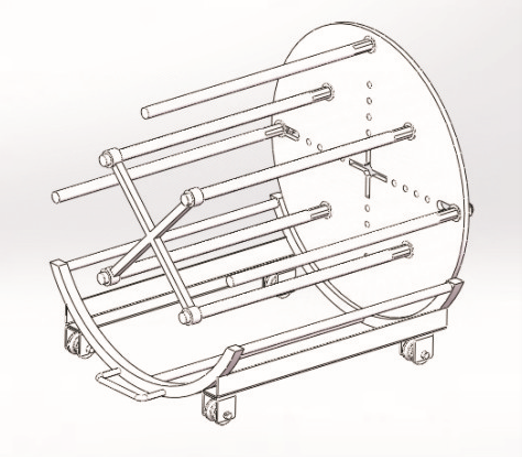

7、Built in sliding trolley, convenient for assembly

8、it can eliminate the stress of the workpiece, Increased ductility, no oxidation.improve the service life of the die and make the wire properties more flexible

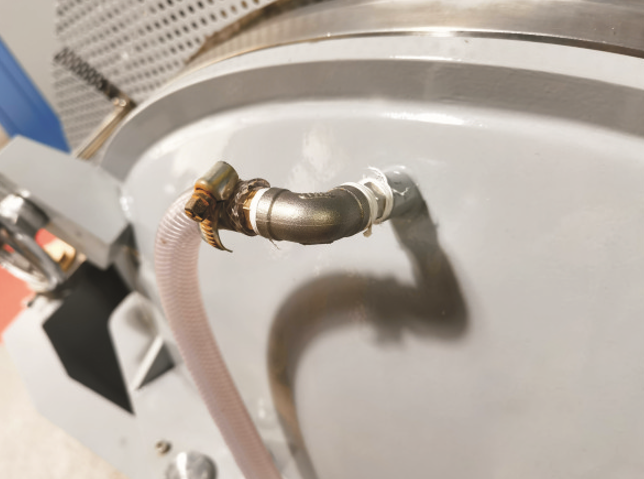

9、The fusalage is water-cooled to reduce thermal radiation and personal safety

10.Specially designed removable heating tube structure, convenient maintenance.time-saving and labor-saving, while greatly improving the thermal efficiency

Machine specification:

Model:CMX-TEF-N14

Power Supply: Three phase 380V,50/60hz

Grounding: The third kind of grounding

Power: 30KW

Temperature control mode: Two way temperature control

Temperature measuring point: Three point temperature measurement

Heating method: Heating tube heating

Maximum temperature: 750℃

Operation mode: 1.Heating in vacuum environment

                             2.Vacuum gas filling heating

                             3. Vacuum displacement gas flow and exhaust heating
