Features:

1.The melting speed is fast, and the tomperature can reach 2100 ℃

2.The temperature control program can be selected, and the heating or cooling curve can be set according to yourprocass requirements,The equipment wll be automaticaly heated or cooled according to this process

3.With dumping devlce, the fused sample can be poured into the prepared ingot moldSample shape you want

4.it can be smelted in various atmospheres: in alr, in protective atmosphere and in high vacuumUnder the condition of smelting. buy a kind of equlpment to reallze multiple functions, and save your cost.

5.With secondary feeding system: it can add other elemenis in the melting process, which is convenient for you toprepare diversified samples

6.The furnace body is made of stainless sleel with water cooling to ensure that the shell temperature is lower than35 ℃ to protect your personal safety

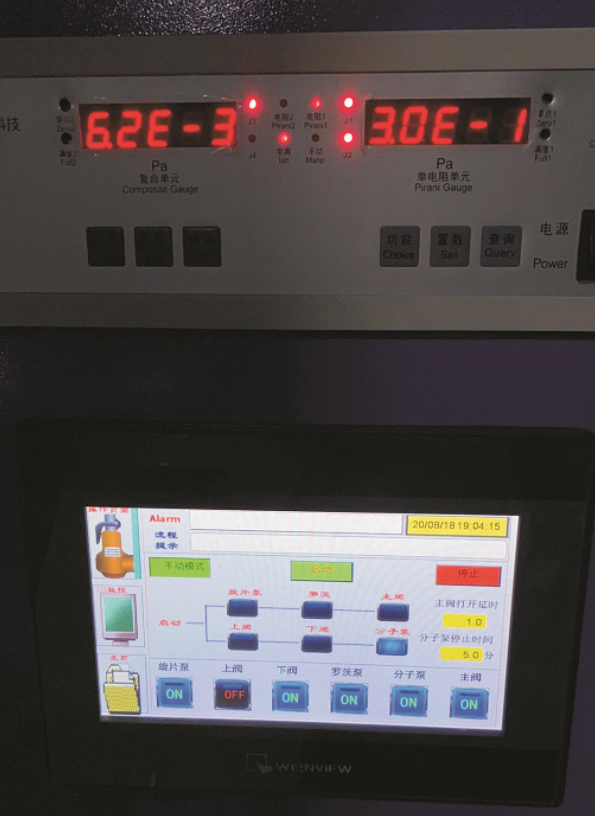

7.Extreme vacuum: 6.5x 10-4pa,commonly vacuum: 6.5x 10-3pa(mechanical pump + molecular pump)

8.Melting temperature: 1750°C can reach 2100°C or above with graphite crucible or high temperature metal crucible

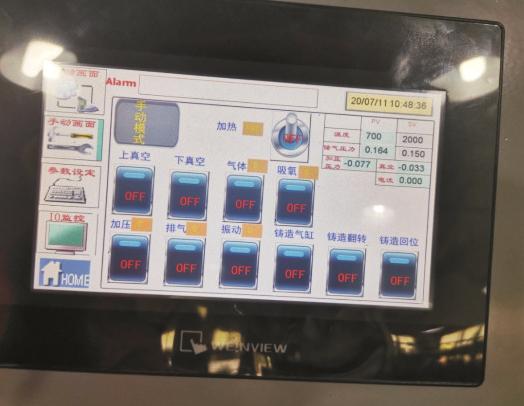

9.Control mode: operation simulation screen+temperature control

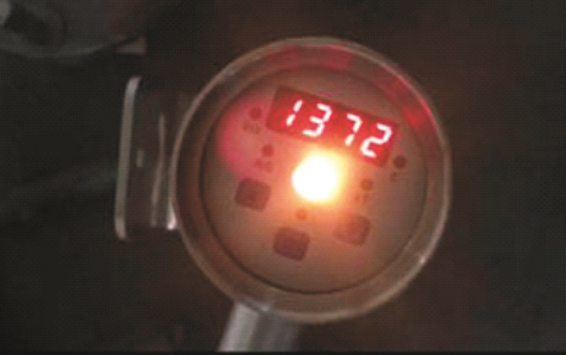

10.Tamperature measurement mode: infrared instrument temperature measurement.with the program instrument to achieve automatic temperature control

Machine specification:

Power Supply:Three phase 380V,50/60Hz

Output power:About 5KW

Melting metal:Au Ag alloy Cu alloy platinum group metals

Gas:Argon or nitrogen

Water supply:10 degrees to 30 degrees

Cooling mode:Water cooled

Smelting method:High vacuum melting (dumping)

Vacuum device:High vacuum unit

Ambient temperature:5 to 40 degrees

Temperature measurement method:1:Bottom contacttype:0~ 1450 ℃(optional)

                                                          2:Topinfrareddetection:600~2000℃(optional)

FluX:1kg

Crucible:Graphite high temperature ceramic replaceable
