Introducing the MX-21M Metal Wire Drawing Machine by Times MinXin, featuring independent servo control for each of its four tower wheels. This advanced machine supports oil-water lubrication, spray and immersion cooling, and offers precise wire handling for ultra-fine wires like gold, silver, copper, and stainless steel. With wire diameters as fine as 18 μm, the MX-21M is designed for high efficiency and long service life, perfect for intelligent chemical plants with full computer control and centralized monitoring.
Features:

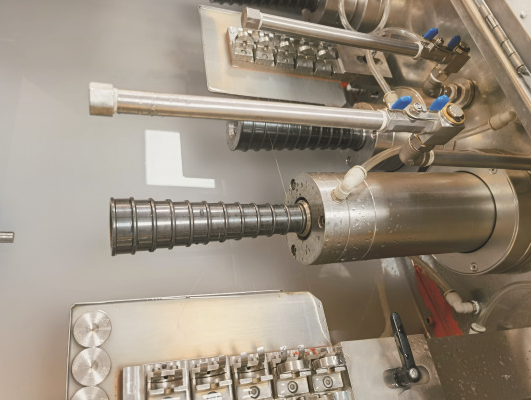

1. Four tower wheel independent servo control is adopted, i.e. four tower wheels and four servo
2. The speed ratio of each tower wheel can be set, Strong adaptability
3. Independent servo control is adopted for take-up and layout
4. Optional servo setting out system
5. The unique fully immersed oil-water lubricating fluid reduces the thermal stress of the wire rod
and minimizes the friction with the tower wheel
6. Spray cooling and immersion cooling wire drawing can be selected
7. The outgoing line shall be cleaned with water bubbles and the tail line shall be air dried
8. All shafts are made of stainless steel with special sealing design

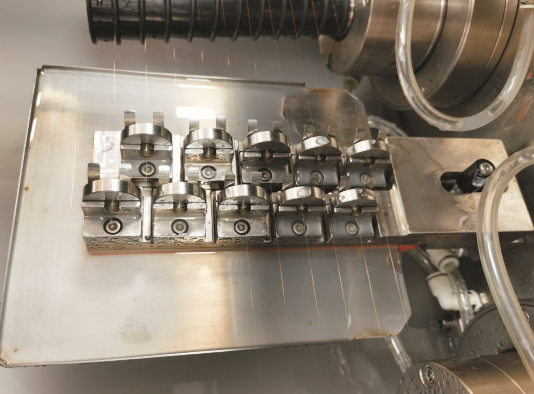

9. It can adjust the telescopic position of each tower wheel and the pull position before and after the die, so that the wire can work at each position and improve the service life of the tower wheel
10. Pull wire lubrication and outlet cleaning are independent systems to prevent oil stains from sticking to the wire
11. Full computer control, which can realize the central monitoring of intelligent chemical plant
12. 100 groups of working mode, data storage, convenient and intuitive
Machine specification:
model: MX-21M
Power Supply: Three phase 380V 200V 50hz/60hz
Applicable materials: Gold,silver, coppers, stainless steel and other ultra-fine metal wires
Finished wire diameter: 50-18 μ m
Wire extension speed: Max600m/min
Tension Range: 1-15g
Wire eye modulus: 21
Storage procedure: 100 groups

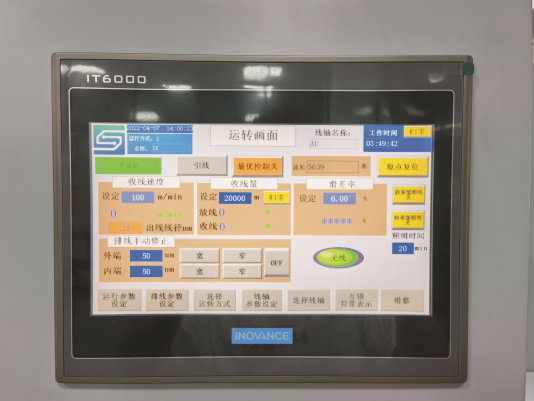

Control mode: Human machine Interface PLC soft program control
Control logic: Optimal control
Start stop mode: Soft start/stop, adjustable start/stop lifting speed
Meter counting method: Setting out/outgoing line meter, real-time display of actual setting out/outgoing line length
