Introducing the MX-19L Metal Wire Drawing Machine by Times MinXin, equipped with a high-power frequency conversion motor and advanced servo control for precise wire handling. This machine supports laser meter counting, spray and immersion cooling, and fully immersed oil-water lubrication to minimize friction. Ideal for processing ultra-fine wires like gold, silver, copper, and stainless steel, with finished wire diameters as fine as 0.1mm. Full computer control allows for centralized monitoring, making it perfect for intelligent chemical plants.
Features:
1. Adopt high-power reduction frequency conversion motor and belt drive
2. Online meter counting function (laser meter counting)
3. Independent servo control is adopted for take-up and layout
4. Optional servo paying off system, large wheel, double pulling small wheel,
constant tension control, automatic follow-up

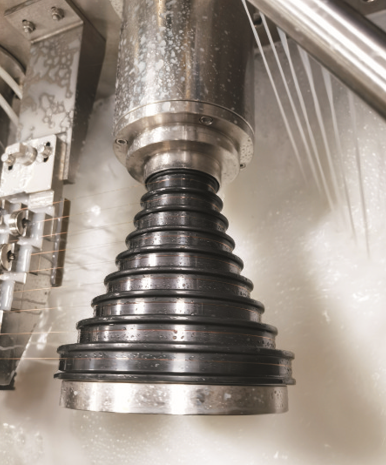

5. The unique fully immersed oil-water lubricating fluid reduces the thermal stress of the wire rod
and minimizes the friction with the tower wheel
6. Spray cooling and immersion cooling wire drawing can be selected
7. Can set different specifications, wire wheel diameter, automatic calculation
8. All shafts are made of stainless steel with special sealing design
9. The front and rear tension positions of the die can be adjusted, so that the wire can work in all
positions, and the service life of the tower wheel can be improved
10. The layout shape can be set
11. Full computer control, which can realize the central monitoring of intelligent chemical plants
12. 100 groups of working mode, data storage, convenient and intuitive
Machine specification:
model: MX-19L
Power Supply: Three phase 380V 200V 50hz/60hz
Applicable materials: Gold,silver, coppers, stainless steel and other ultra-fine metal wires
Finished wire diameter: 1.5 - 0.1mm
Wire extension speed: Max 300m/min
Tension Range: 20g ~ 300g
Wire eye modulus: 19
Storage procedure: 100 groups

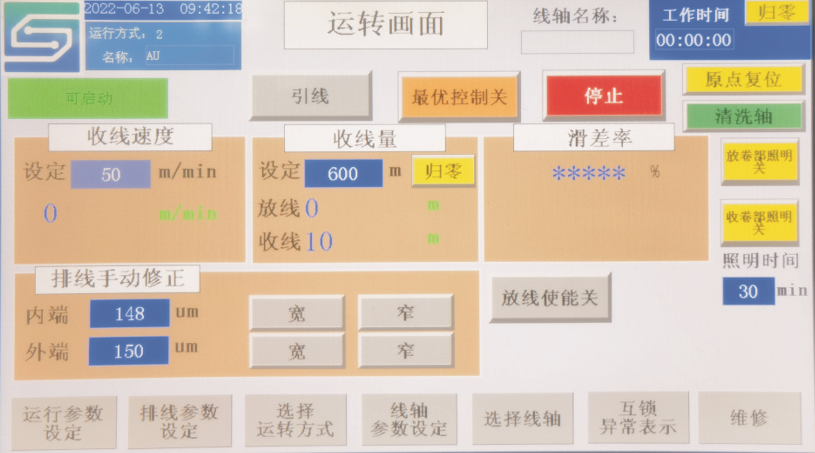

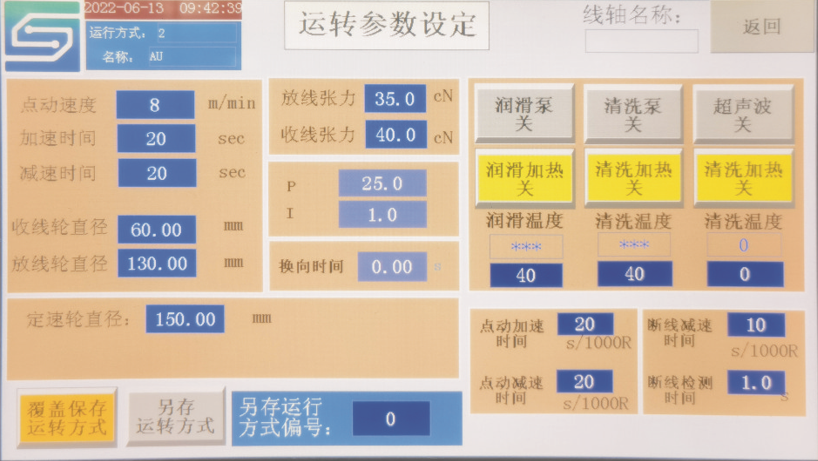

Control mode: Human machine Interface PLC soft program control
Control logic: Optimal control, closed loop control
Start stop mode: Soft start/stop, adjustable start/stop lifting speed
Meter counting method: Setting out/outgoing line meter, real-time display of actual setting out/outgoing line length
