Features:

1. The self-developed two axis linkage control group has high real-time performance

2. Tension intelligent control, height value can be set and PI adjustment can follow closely

3. Unique error correction calculation function, that is, if a group of settings is wrong, the system will automatically adjust according to the actual situation

4. 60 groups of wire diameter program storage and 100 groups of menu memory

5. Automatic shutdown when the length reaches

6. The capacity statistics function automatically accumulates the actual workload of the day

7. The most advanced servo control system is adopted, which can work continuously for a long time

8. The MCU control program with independent intellectual property rights is accurate

9. International specification module is adopted, which is smooth and stable

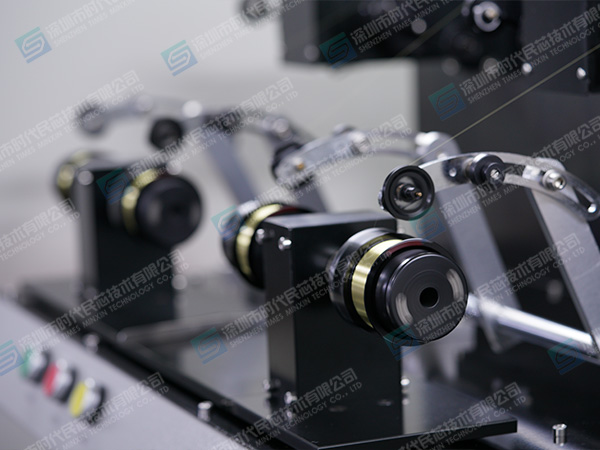

10. The take-up frame is made of metal to ensure concentricity and reduce runout

11. Full touch screen visual control, easy to operate

12. The wire arrangement adopts pulse control and the wire distance is accurate

13. Optional φ 50、 φ 100 take-up shaft and high and low shaft take-up

14. High degree of intelligence, beautiful finished products, rules and high efficiency

Machine specification:

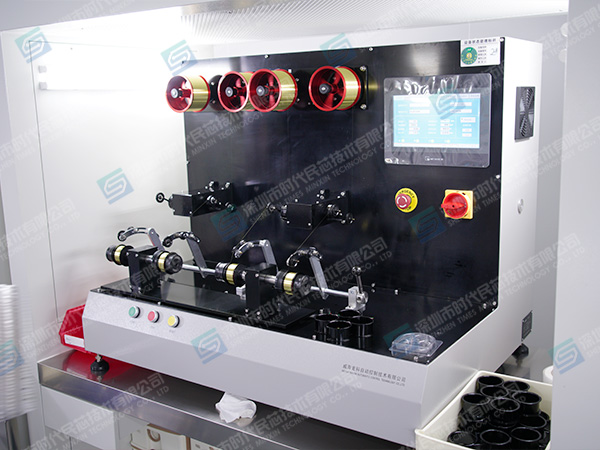

Model: mx-4a

Take up speed range: 0-1000rpm

Wiring accuracy: 0.001mm

Thread pitch of wire arranging screw rod: 10mm

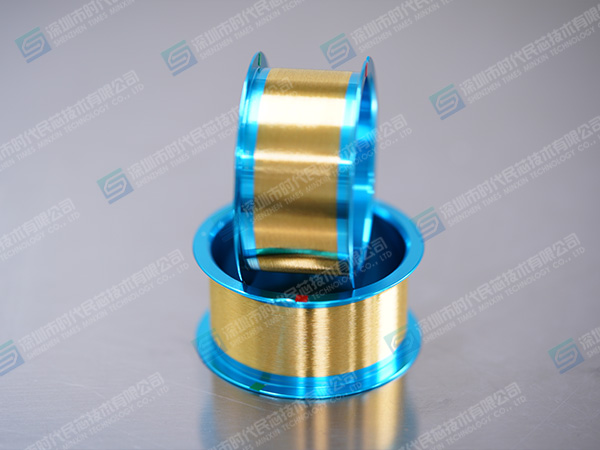

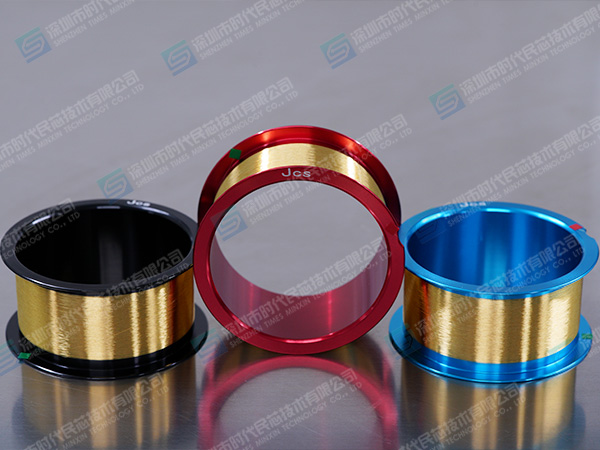

Spool diameter range: 50mm-100mm

Spool width: 47mm and 27mm

Number of supported axes: 4-wire rewinding

Applicable rewinding diameter range: 0.010-0.050mm

Tension range: 0.5-20g
